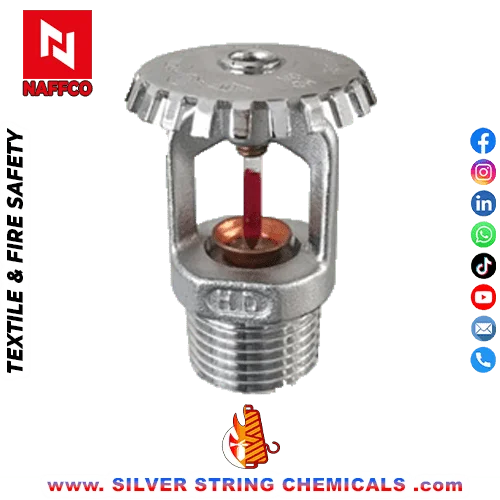

NAFFCO Upright Sprinkler

NAFFCO Upright Sprinkler

Original price was: ₨ 2,340.Current price is: ₨ 1,950.

The SHIELD Sprinklers by NAFFCO PAKISTAN are designed for ultimate fire safety and quick response. Available in models SD1010, SD1015, SD1030, and SD1032, these glass bulb-type sprinklers utilize state-of-the-art frangible glass bulbs to ensure precise operation. Their attractive die-cast frames are easier to install, featuring a hex-shaped wrench boss for efficient tightening. Designed for versatility, these sprinklers come in various temperature ratings and finishes, with recessed pendant models allowing for adjustable installation. The K Factor is 5.6 gpm/psi½ (80 lpm/bar½), and the RTI is rated at 50 for standard and 30 for quick response. With a maximum working pressure of 175 PSI (1200 kPa) and a robust Belleville seal for long life, these sprinklers provide reliable protection. Choose SILVER STRING CHEMICALS GROUP for the best fire safety solutions in Pakistan.



Factors Impacting Cost Variations:
Ulfm/Lpcb/Kitemark/Local-Standard/Etc.
Local/China/Japan/Usa/Uae/Etc.
Different Types of Sizes Etc.
Quality/Gauges/Strength/Etc.

Category:

Description

NAFFCO Upright Sprinkler

  • Part Number: SD1010, SD1015, SD1030, SD1032
  • Style: Upright, Pendent, Recessed Pendent
  • K Factor: 5.6 gpm/psi½
  • Orifice Size: 13 mm
  • Max Working Pressure: 175 PSI
  • Min Operation Pressure: 7 PSI
  • Nominal Thread Size: ½” NPT
  • RTI (Standard): 50
  • RTI (Quick Response): 30
  • Factory Hydrostatic Test: 100% @ 500 PSI

For more information, visit our website: https://silverstringchemicals.com/

Connect with us on social media:

Contact us via email at: silverstringchemicals@gmail.com

ALL PRICES MENTIONED ON SSC SHOP: Ex-Works Factory, Lahore, Pakistan.
FREIGHT CHARGES & TAXES ARE EXCLUDED
90% Advance & 10% Before Delivery Is Must.
Delivery: 4 days to 30 days, Depending On Local Supplies or Imports.
We Provide Services For Testing, Commissioning & Fittings As Well.
Stock Availability Will Be Checked & Communicated To You After We Receive Your Quantity/Standard.
Items Were Last Updated In June 2023.

Introducing SHIELD Sprinklers by NAFFCO

The SHIELD Sprinklers by NAFFCO PAKISTAN represent a pinnacle of fire safety technology, setting a new standard for protecting both residential and commercial properties. As part of our commitment to providing top-notch safety solutions, SILVER STRING CHEMICALS GROUP proudly offers these innovative sprinklers to enhance fire safety and ensure prompt responses in emergencies.

Advanced Design and Functionality

Available in models SD1010, SD1015, SD1030, and SD1032, these glass bulb-type sprinklers feature state-of-the-art, heat-responsive frangible glass bulbs. This design ensures quick activation, minimizing damage and risk during a fire outbreak.

Moreover, the SHIELD Sprinklers are aesthetically pleasing. Unlike traditional sand-cast frames, their die-cast frames offer a streamlined appearance, making them suitable for various design applications. Each unit includes a hex-shaped wrench boss, simplifying installation. This feature allows easy tightening from multiple angles, significantly reducing assembly time and effort.

Versatile Temperature Ratings and Finishes

Designed for versatility, the SHIELD Sprinklers come in various temperature ratings and finishes, allowing seamless integration into any environment. The recessed pendant models are designed for use with a recessed escutcheon and provide adjustable height of up to 1 inch. This feature makes them ideal for spaces where aesthetics matter. All SHIELD Sprinklers utilize the time-proven Belleville seal, ensuring long life and safe operation in critical fire protection applications.

Technical Specifications

For professionals in the field, understanding technical specifications is crucial. The SHIELD Sprinklers have a K Factor of 5.6 gpm/psi½ (80 lpm/bar½), ensuring a strong water discharge rate for effective fire suppression. The Response Time Index (RTI) is rated at 50 for standard response models (SD1015, SD1010) and a swift 30 for quick response models (SD1030, SD1032). This rapid response capability is vital in mitigating fire hazards before they escalate.

Easy Installation and Reliable Operation

Installation is straightforward, with a nominal thread size of ½” NPT (15 mm) and an orifice size of 13 mm. The SHIELD Sprinklers operate effectively at a maximum working pressure of 175 PSI (1200 kPa). They undergo a factory hydrostatic test of 100% at 500 PSI (3450 kPa), assuring reliability under high-pressure conditions. Additionally, the minimum operational pressure is rated at 7 PSI (48 kPa), allowing functionality across a wide range of scenarios.

Your Trusted Supplier for Fire Safety Solutions

As the leading supplier of fire, health, and industrial safety products in Pakistan, SILVER STRING CHEMICALS GROUP ensures you have access to high-quality items. Our extensive online shop is recognized as the largest safety shop in Pakistan. We guarantee a broad selection of products that meet international safety standards.

Conclusion

In summary, the SHIELD Sprinklers by NAFFCO PAKISTAN are the ideal choice for enhancing fire safety in any space. With advanced design, quick response capabilities, and appealing features, they suit both commercial and residential applications. Trust SILVER STRING CHEMICALS GROUP to provide reliable and effective safety solutions tailored to your needs. Equip your property with the best fire protection technology available and ensure peace of mind with SHIELD Sprinklers.
