FIRE SUPPRESSION SYSTEM PAKISTAN

E500 + CO2 SEPERATE PIPE FIRE SUPPRESSION SYSTEM

Silver String Chemicals Group is Pakistan’s leading provider of advanced fire suppression solutions, offering the E500 + CO2 Separate Pipe Fire Suppression System. Our state-of-the-art system ensures optimal protection for high-value equipment, electrical panels, and sensitive areas, covering multiple fire classes. We provide fast, reliable, and cost-effective fire protection for industries like electronics, telecommunications, and manufacturing. With nationwide delivery and installation services, we guarantee top-tier safety and compliance with international standards. Trust Silver String Chemicals for the best fire suppression system in Pakistan—your ultimate choice for safeguarding assets and ensuring reliable, efficient fire protection.



Factors Impacting Cost Variations:
Ulfm/Lpcb/Kitemark/Local-Standard/Etc.
Local/China/Japan/Usa/Uae/Etc.
Different Types of Sizes Etc.
Quality/Gauges/Strength/Etc.

Category:

Description

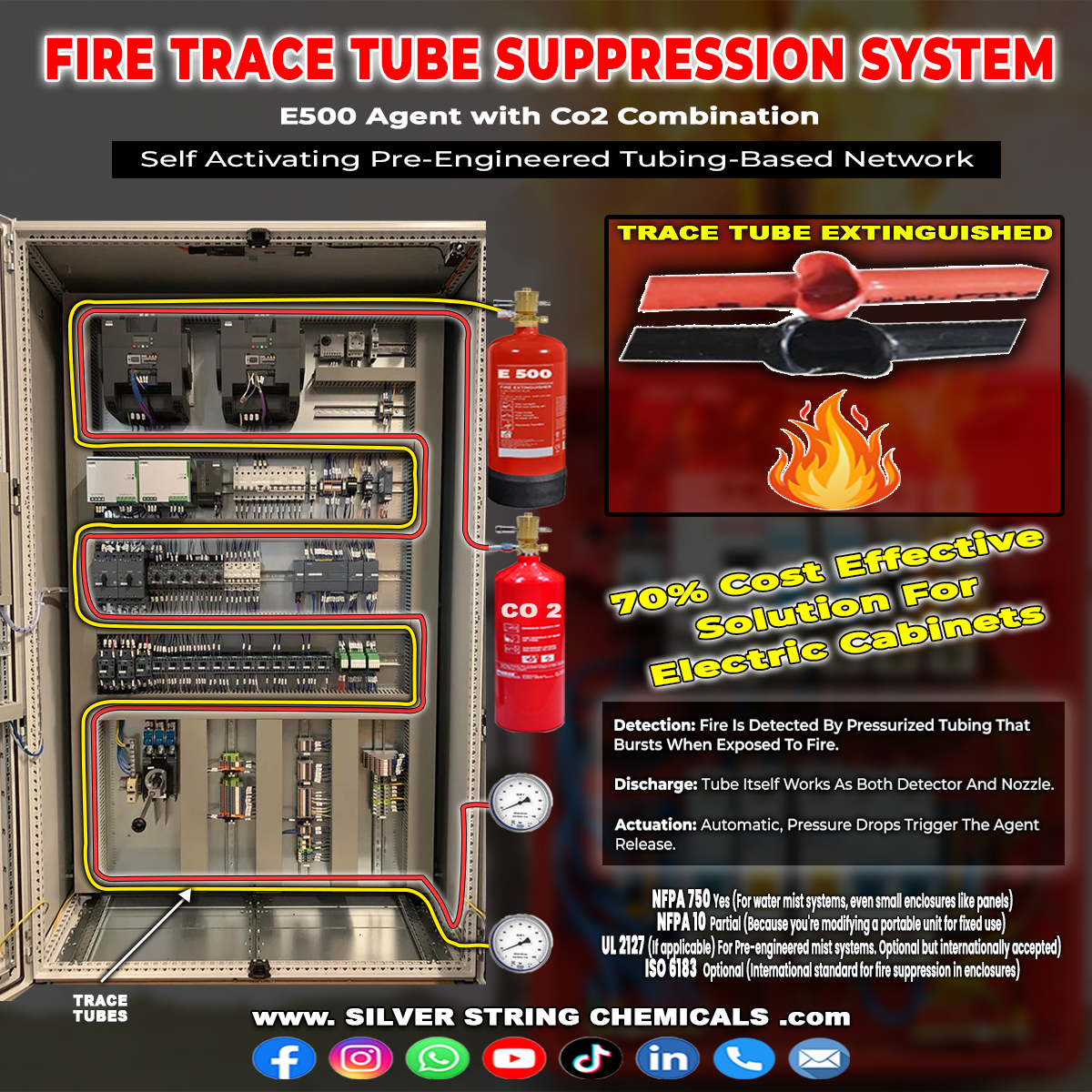

E500 + CO2 SEPERATE PIPE FIRE SUPPRESSION SYSTEM

Model 2: Fire Trace Tube Suppression System (E500 + CO2 Dual Cylinders, Separate Setup)

  1. Agent Type: E500 + CO2 Dual Agent System
  2. E500 3kg + Co2 5kg
  3. Cylinder Type: Two separate cylinders for E500 and CO2
  4. Fire Class Coverage: A, B, C, D, E, K
  5. System Type: Pre-engineered, dual-cylinder design
  6. Detection Method: Trace tubing detects heat and fire
  7. Discharge Mechanism: Dual output (E500 & CO2 lines)
  8. Discharge Sequence: CO2 provides instant knockdown; E500 follows to cool & suppress reburning
  9. Activation Mode: Pressure drop initiates discharge
  10. Agent Syncing: Both agents calibrated to discharge 99% simultaneously
  11. Tubing Network: Double-line, high-performance layout
  12. Dual Pressure Gauges: One for each cylinder
  13. Enclosure Compatibility: Designed for high-value control panels
  14. Extinguishing Speed: Instant on flame contact – under 5-10 seconds
  15. Operating Pressure: 12 to 18 bar (normal charge)
  16. Compatible for panels with use of 15ft to 18ft pipe
  17. Discharge Time: Under 10-20 seconds full release
  18. Activation Temperature: Approx. 120°-170°C
  19. Safety Valve: Anti-overpressure safety mechanism
  20. Residual CO2 Gas: Helps reduce oxygen to extinguish flame
  21. Agent Properties: E500 (clean + non-corrosive), CO2 (oxygen displacement)
  22. Agent Compatibility: 99% Non-reactive to electronic components
  23. Zero Power Requirement: Fully mechanical operation
  24. Maintenance Cycle: Annual inspection of agent levels and tubing
  25. SILVER STRING CHEMICALS SAFETY GROUP PAKISTAN FIRE SUPPRESSION SYSTEM, SUPPLY, DELIVERY, INSTALLATION ALL OVER PAKISTAN.
  26. 70% Cost Effective Solution For Electric Cabinets
  27. Compliance: NFPA 750 ✅ Yes (For water mist systems, even small enclosures like panels) NFPA 10 ✅ Partial (Because you’re modifying a portable unit for fixed use) UL 2127 ✅ (If applicable) For Pre-engineered mist systems. Optional but internationally accepted) ISO 6183 🔹 Optional (International standard for fire suppression in enclosures)

Availability: Available fire trace tube suppression system in Pakistan by silver string chemicals group.The E500 + CO2 Separate Pipe Fire Suppression System is a leading fire protection solution for high-value control panels, electrical cabinets, and sensitive equipment areas. This advanced system combines the powerful fire suppression capabilities of E500 and CO2 agents, providing a reliable and efficient defense against fires across multiple fire classes. Silver String Chemicals Group, a trusted name in Pakistan, offers the Fire Trace Tube Suppression System, ensuring top-tier supply, delivery, and installation services across the country.

For more information, visit our website: https://silverstringchemicals.com/

Connect with us on social media:

Contact us via email at: silverstringchemicals@gmail.com

E500 + CO2 Fire Suppression System

Dual Cylinder – Separate Pipe Setup for All-Round Protection

The E500 + CO2 Fire Suppression System is a high-performance, dual-cylinder solution designed to tackle nearly all types of fires. It offers reliable protection for:

  • Class A (ordinary combustibles)

  • Class B (flammable liquids)

  • Class C (electrical fires)

  • Class D (combustible metals)

  • Class E (energized equipment)

  • Class K (cooking oils and fats)

This makes it ideal for factories, commercial buildings, power plants, and critical infrastructure.

Dual-Agent Technology for Maximum Effectiveness

What sets this system apart is its dual-agent fire suppression design:

  • Cylinder 1 contains E500, a clean agent that’s non-corrosive and leaves no residue.

  • Cylinder 2 holds CO2, which rapidly suppresses fire by displacing oxygen.

When a fire is detected, CO2 is released first to immediately knock down flames. Then, E500 discharges to cool the area, preventing re-ignition. Together, they offer 99% efficiency in fire suppression.

Fast Detection and Rapid Response

Thanks to its Fire Trace Tube technology, this system:

  • Detects fire within 5 to 10 seconds

  • Completes suppression in under 20 seconds

In high-risk environments, this speed can prevent significant damage and save lives.

Automatic Activation – No Power Needed

The system uses heat-sensitive trace tubing that responds to temperatures between 120°C and 170°C. Once triggered, the pressure drops, and both agents discharge automatically—no manual action or electricity required.

Dual pressure gauges let you monitor each cylinder in real-time, ensuring constant readiness.

Built for Safety and Simplicity

  • A safety valve protects against overpressure

  • Residual CO2 helps to keep oxygen levels low after discharge

  • Works without electricity—ideal for sensitive environments like:

    • Server rooms

    • Electrical cabinets

    • Power-critical areas

Cost-Effective and High Quality

Despite its advanced performance, the E500 + CO2 system is up to 70% more affordable than traditional fire suppression setups. It’s a smart choice for:

  • Electronics manufacturing

  • Data centers

  • Telecom facilities

  • Automotive plants

Low Maintenance, High Reliability

This system requires just one inspection per year, making it incredibly easy to maintain. There’s no need for frequent servicing, yet it remains fully operational at all times.

Certified to Global Fire Safety Standards

The system complies with key international standards, including:

  • NFPA 750 (water mist and small enclosures)

  • NFPA 10 (fire extinguisher requirements)

  • UL 2127 (pre-engineered mist systems)

  • ISO 6183 (for total flooding systems – optional)

Nationwide Installation Across Pakistan

Whether you’re in Karachi, Lahore, Islamabad, Faisalabad, or elsewhere, Silver String Chemicals Group provides expert installation and ongoing support nationwide. All setups meet international safety and quality standards.

Why Choose Silver String Chemicals Group?

Silver String Chemicals Group is Pakistan’s most trusted name in fire, health, and industrial safety. With years of experience, a large product portfolio, and skilled engineers, we provide:

  • Expert consultation

  • Reliable installation

  • Long-term maintenance and support

Our focus on affordability, reliability, and customer satisfaction has made us a leader in the fire safety industry.

Protect What Matters Most

Don’t wait for a fire emergency. Safeguard your people, property, and equipment with the E500 + CO2 Fire Suppression System.

Contact Silver String Chemicals Group today for expert advice, pricing, and installation details.
