BRISTOL Hose Rack Set 1-1/2” with Accessories with Single Door Cabinet For Hose Rack 800×800×300mm
- Model: BF-SJ-001, BF40, RA15F | UL Listed
- Valve: RA15F, Brass, 175 PSI, Pressure Restricting
- Adapter: 1½″ M.NPT × F.Inst (48.5 mm)
- Rack: Pin-type for lay-flat hose
- Hose: 1½″ × 30m, White Canvas, 200 PSI
- Nozzle: 1½″ F. NST, BF40, 130 GPM @100 PSI
- Coupling: 1½″ Inst. Aluminum
- Additional Adapter: 1½″ M.NST × 1½″ M.Inst
- UL Certification: All components
- Material: Canvas hose, brass & aluminum parts
- Application: Hose rack station
- Mounting: Wall-mounted
- Operating Pressure: 100–200 PSI
- Compatibility: With 1.5″ hose systems
- Nozzle Operation: Jet/Spray
- Finish: Red enamel / brass polish
Single Door Cabinet For Hose Rack 800×800×300mm - Material: Galvanized Steel
- Type: Surface-mounted fire cabinet
- Size: 800x800x300mm
- Door: Single
- Hinges: 2 round bar welded
- Lock: 1 round latch
- Material: Galvanized steel 1.0 mm
- Finish: Red powder coat (assumed)
- Mount: Surface
- Ventilation: Optional
- Contents: Hose, extinguisher, landing valve
- Handle: SS latch or knob
- Rust Protection: Epoxy coating
- Swing: 180° door movement
- Hinge Type: Piano/round bar
- Customization: Available sizes/colors
- Please note, if you want to open an LC and import yourself, we will handle all arrangements for you, Ex-Works Dubai price at $560
- Prices in PKR shown by us are Including items prices & 95% Taxes/Customs & Excluding Freight Charges.
For more information, visit our website: https://silverstringchemicals.com/
Connect with us on social media:
- LinkedIn: Silver String Chemicals
- TikTok: @silverstringchemicals
- YouTube: Silver String Chemicals
- Instagram: @silverstringchemicals_ssc
- Facebook: Silver String Chemicals
Contact us via email at: silverstringchemicals@gmail.com
| ALL PRICES MENTIONED ON SSC SHOP: Ex-Works Factory, Lahore, Pakistan. | |||||
| FREIGHT CHARGES & TAXES ARE EXCLUDED | |||||
| 90% Advance & 10% Before Delivery Is Must. | |||||
| Delivery: 4 days to 30 days, Depending On Local Supplies or Imports. | |||||
| We Provide Services For Testing, Commissioning & Fittings As Well. | |||||
| Stock Availability Will Be Checked & Communicated To You After We Receive Your Quantity/Standard. | |||||
| Items Were Last Updated In June 2023. |

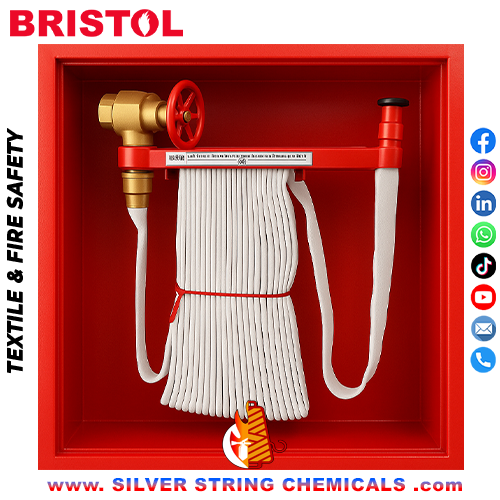

BRISTOL 1½” Hose Rack Set with Accessories + Single Door Fire Cabinet – UL Listed Complete Assembly
The BRISTOL 1½” Hose Rack Set with Accessories is a fully UL Listed fire hose station designed to deliver dependable, code-compliant fire protection in commercial buildings, industrial facilities, shopping malls, and high-rise structures. This complete system includes everything required for quick deployment and high-volume fire suppression.
At the core of this setup is the RA15F pressure-restricting valve, built from durable brass and rated up to 175 PSI. Paired with a 1½″ × 30m white canvas hose (200 PSI rated), the hose rack system features a pin-type lay-flat rack for easy folding and rapid pull-out operation. The nozzle (BF40) delivers up to 130 GPM @ 100 PSI and supports jet/spray modes, providing versatile control in emergency situations.
The included adapters and 1½” aluminum couplings ensure compatibility with both NPT and NST/Inst-type connections, making this rack suitable for most 1½” hose systems.
🔧 Hose Rack Technical Details
-
Model: BF-SJ-001, BF40, RA15F
-
Valve: RA15F Brass, 175 PSI, Pressure Restricting
-
Hose: 1½” × 30 meters, White Canvas, 200 PSI
-
Nozzle: BF40, 1½″ F. NST, Jet/Spray, 130 GPM @ 100 PSI
-
Rack: Pin-type lay-flat design
-
Couplings: 1½″ Inst. Aluminum
-
Adapters: 1½” M.NPT × F.Inst (48.5 mm) + M.NST to M.Inst
-
Application: Wall-mounted fire hose station
-
UL Listed: All components included
🧱 Cabinet Specifications
-
Type: Surface-mounted, single door
-
Material: 1.0 mm galvanized steel
-
Dimensions: 800×800×300 mm
-
Finish: Red powder coat (RAL standard assumed)
-
Door Features:
-
Single panel door
-
SS latch or knob
-
180° swing
-
Piano/round bar welded hinges
-
-
Optional: Ventilation slot
-
Mounting: Wall surface
-
Corrosion Resistance: Epoxy-coated interior/exterior
-
Contents: Compatible with hose, extinguisher, and landing valve
🌐 Applications
This cabinet and rack system is ideal for:
-
Commercial buildings
-
Warehouses and industrial sites
-
High-rise residential towers
-
Hospitals, schools, and malls
Designed for fast access and ease of use, it ensures effective first response fire suppression before firefighters arrive. The UL certification across all components guarantees compliance with international fire protection codes.
💰 Pricing & Import Options
-
Ex-Works Dubai Price: $320
-
Import Assistance: LC arrangement fully supported by Silver String Chemicals
-
PKR Pricing: Includes 95% taxes/customs (freight excluded)
For a durable, compliant, and ready-to-deploy fire safety solution, trust the BRISTOL Hose Rack Set with Cabinet — precision-engineered for performance and peace of mind.
