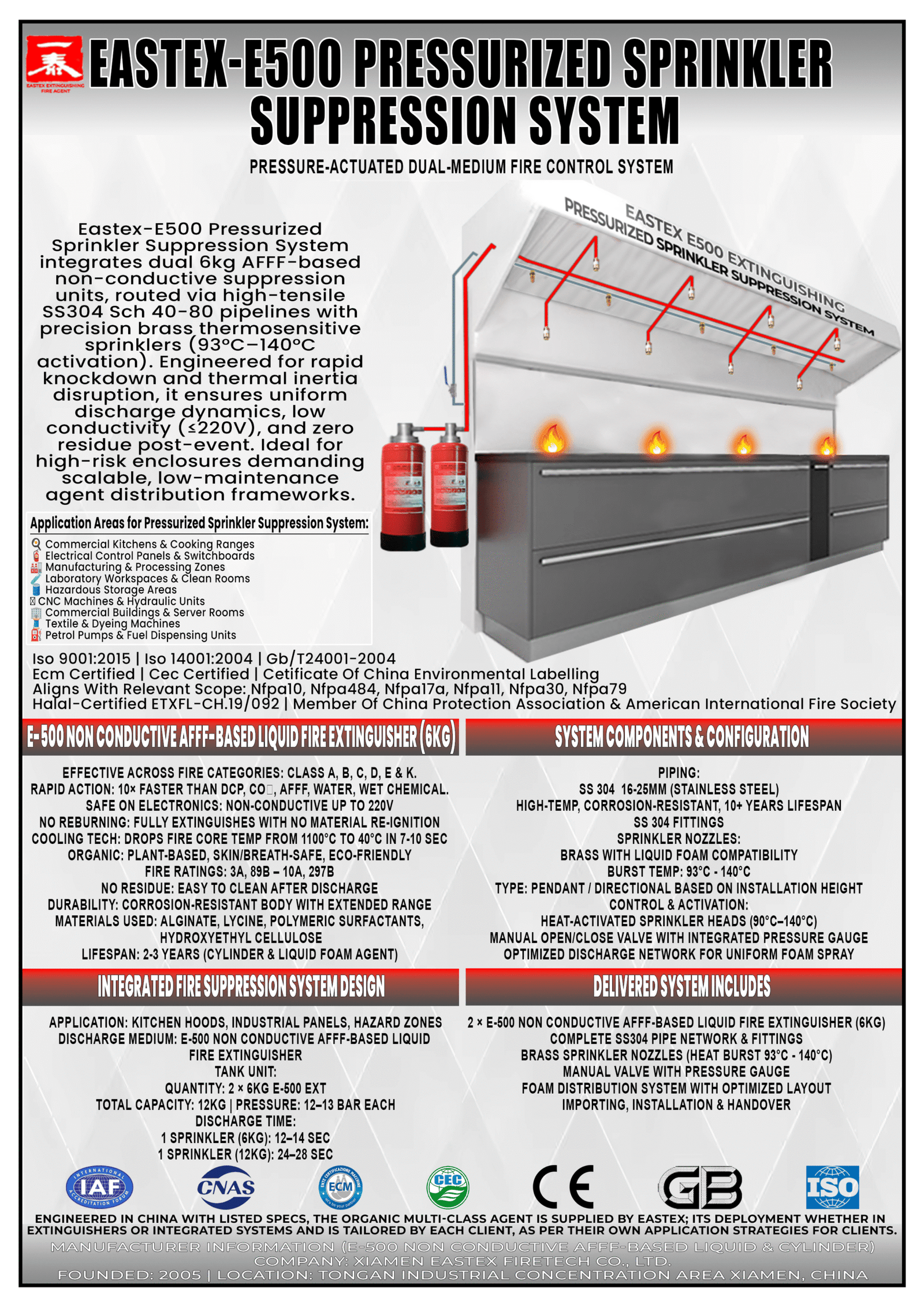

Data Sheet (TDS) EASTEX China E500 Kitchen Hood Suppression System
Eastex Kitchen Hoods Safety DataSheet
For more information, visit our website: https://silverstringchemicals.com/
Connect with us on social media:
- LinkedIn: Silver String Chemicals
- TikTok: @silverstringchemicals
- YouTube: Silver String Chemicals
- Instagram: @silverstringchemicals_ssc
- Facebook: Silver String Chemicals
Contact us via email at: silverstringchemicals@gmail.com
| ALL PRICES MENTIONED ON SSC SHOP: Ex-Works Factory, Lahore, Pakistan. | ||||||
| FREIGHT CHARGES ARE EXCLUDED | ||||||
| THESE PRICES ARE EXCLUDING TAXES | ||||||
| SEARCH THE WORD YOU ARE FINDING ITEM ON PAKISTAN’S BIGGEST ONLINE SHOP | ||||||
| DELIVERY: 4 DAYS – 45 DAYS DEPENDING ON LOCAL SUPPLIES OR IMPORTED | ||||||
| WE PROVIDE SERVICES FOR TESTING AND COMMISSIONING AND FITTINGS TOO. | ||||||
| stock availbility will be checked and told to you | ||||||
| prices are last updated in January 2023 |
Introduction to the E500 Suppression System
The EASTEX E500 Kitchen Hood Suppression System is a state-of-the-art fire protection solution. It is specially designed for high-risk environments like kitchen hoods, industrial control panels, and hazardous zones. Developed by Xiamen Eastex Firetech Co., Ltd., the system features the E-500 Non-Conductive AFFF-based Liquid Fire Extinguisher. This ensures fast, safe, and environmentally friendly fire suppression.
Manufacturer Overview
Company: Xiamen Eastex Firetech Co., Ltd.
Founded: 2005
Location: TongAn Industrial Concentration Area, Xiamen, China
Certifications:
- ISO 9001:2015
- ISO 14001:2004 / GB/T24001-2004
- ECM and CEC Certified
- China Environmental Labelling Certificate
- Halal Certified (ETXFL-CH.19/092)
Memberships:
- China Protection Association
- American International Fire Society
Compliance Standards:
NFPA10, NFPA484, NFPA17A, NFPA11, NFPA30, NFPA79
E-500 Non-Conductive AFFF-Based Liquid
This agent is a powerful plant-based liquid with multi-class suppression abilities:
Applicable Fire Classes:
A: Ordinary combustibles
B: Flammable liquids
C: Electrical fires
D: Combustible metals
E: Energized electrical equipment
K: Cooking oils and fats
Key Features:
- Rapid Action: Extinguishes up to 10× faster than traditional systems.
- Non-Conductive: Safe on live electrical equipment (up to 220V).
- Cooling: Reduces temperature from 1100°C to 40°C in under 10 seconds.
- No Re-ignition: Prevents fire from reigniting.
- Safe Composition: Made from organic materials; skin- and lung-friendly.
- Eco-Friendly: No harmful residue; easy to clean after use.
Fire Ratings:
From 3A, 89B to 10A, 297B — ensuring broad applicability.
System Components & Design
Tank Units:
- 2 × 6kg E-500 Fire Extinguishers
- Total Capacity: 12kg
- Pressure: 12–13 bar/unit
- Discharge Time: 12–28 seconds depending on unit
Pipework:
- Stainless Steel SS 304
- Diameter: 16mm–25mm
- Features: High-temperature and corrosion resistance, lifespan over 10 years
Sprinkler Nozzles:
- Material: Brass
- Types: Pendant and Directional
- Activation: 93°C to 140°C
Control Mechanism:
- Heat-activated heads for automatic response
- Manual valve with pressure gauge for monitoring
- Customizable discharge layout for optimal coverage
Key Advantages of E500 Technology
Safe for Electronics:
The non-conductive E-500 agent ensures protection in areas with electrical devices and panels.
Fast Knockdown:
E-500 chemistry enables much faster suppression compared to other agents.
No Residue, No Re-Ignition:
It leaves no damaging residue and eliminates any chance of the fire reigniting.
Targeted Activation:
Only activates when required, thanks to high-temperature sprinkler heads.
Eco-Friendly & Safe:
Plant-based, non-toxic, and biodegradable formulation.
Applications
Commercial Kitchens:
- Restaurants
- Hotels
- Catering units
- Food courts
- Industrial cooking setups
Industrial & Hazardous Zones:
- Electrical control rooms
- Manufacturing units
- Chemical storage areas
- Generator and power stations
Delivery & Installation
Complete System Includes:
- 2 × 6kg E-500 AFFF-Based Extinguishers
- SS 304 Pipework (16–25mm)
- Brass Heat-Activated Nozzles
- Manual Valve with Pressure Gauge
- Custom foam distribution layout
Installation:
Tailored to client needs. Includes setup, discharge layout design, and system commissioning.
Certifications & Compliance
Standards Met:
- NFPA 10: Portable Extinguishers
- NFPA 17A: Wet Chemical Systems
- NFPA 30: Flammable Liquids Code
- NFPA 79: Electrical Machinery Standard
- ISO 9001:2015, ISO 14001:2004
- ECM, CEC, and China Environmental Labelling
Lifespan & Maintenance
Foam Agent & Cylinder: 2–3 years
Pipe Network: 10+ years
Sprinkler Heads: Replace per heat performance
Maintenance Includes:
- Checking gauges
- Testing valves
- Inspecting nozzles and pipe integrity
Why Choose EASTEX E500?
- Multi-class fire coverage: A, B, C, D, E, K
- Reduces core fire temperature in seconds
- Safe for use around electronics
- No re-ignition or messy cleanup
- Biodegradable and non-toxic formula
- Modular system for all scales
- Durable and low-maintenance
Conclusion
The EASTEX E500 Kitchen Hood Suppression System sets a high standard for fire safety. With rapid action, eco-friendly composition, and full international compliance, it suits a wide range of applications. Whether it’s a restaurant kitchen or an industrial control room, E500 ensures fast, safe, and effective fire suppression with minimal impact.
