FIRE KNOCK-OFF SYSTEM (1000 Liters)

Description

FIRE KNOCK-OFF SYSTEM (1000 Liters)

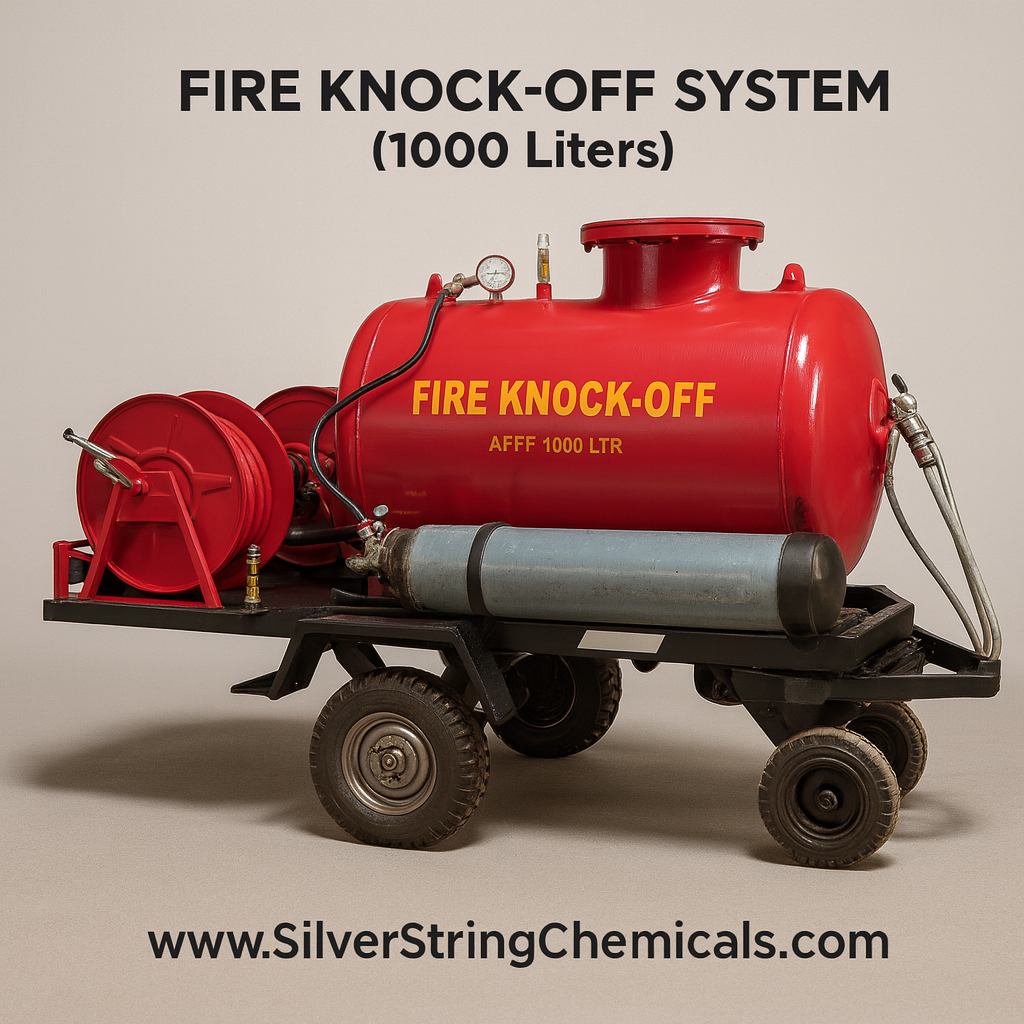

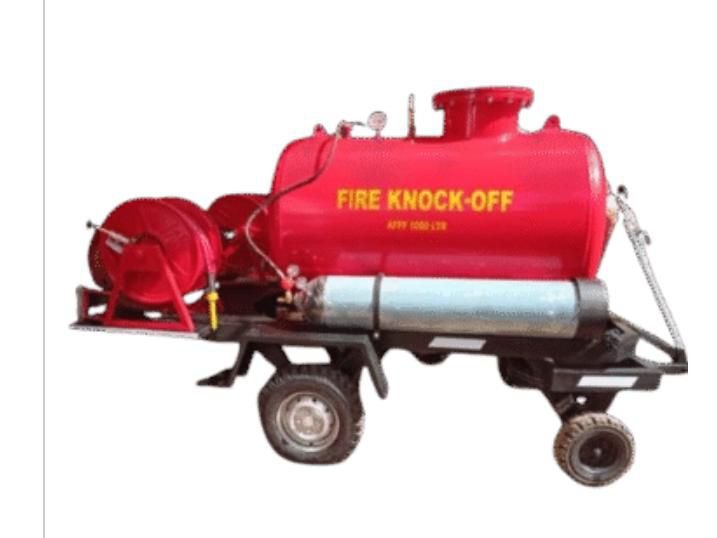

Foam AFFF 3%, 1000 Litters capacity Fire Extinguisher Trailer

• Construction: Main barrel is made of 6mm mild steel sheet, electrically welded, tested to 350 lbs psi (25 bar); provided with manhole, filling and drain connections, pressure gauges and pressure release valve.
• Expelling Agent: 02 Nos. Nitrogen cylinders are provided fitted with pressure regulators which serve as the expelling agent.
• Trailer: 2-axle, 4-wheeler, having solid rubber tyres – 2 of 16″ and 2 of 14″, provided with swivel assembly for front axle which ensures easy turning.
• Operation: The opening of Nitrogen cylinders pressurize the main cylinder. The AFFF solution is discharged through the two hose reels, provided on the trailer.
• Hose Reels: 02 Hose reels are provided 1″ x 100 ft high pressure hose, fitted with individual on-off control and TP Nozzle.
• Discharge Time: 4 to 5 minutes.
• Throw : 60 to 70 feet.

The Defender series of fire knock off system has been designed with long range performance in mind.
This is a trailer-mounted 1000 liters capacity fire extinguisher of premixed solution of Foam AFFF 3%. Ideally suited for refineries, oil/gas installation, chemical warehouses and other places where highly inflammable substances are stored, processed and/or handled. It provides a reliable and highly effective support to the fire fighting.

For more information, visit our website: https://silverstringchemicals.com/

Connect with us on social media:

• LinkedIn: Silver String Chemicals
• TikTok: @silverstringchemicals
• YouTube: Silver String Chemicals
• Instagram: @silverstringchemicals_ssc
• Facebook: Silver String Chemicals

Contact us via email at: silverstringchemicals@gmail.com

Fire Knock-Off System (1000 Liters): Your Premier Fire Safety Solution

At Silver String Chemicals, our top priority is safety in high-risk environments. We present the Fire Knock-Off System, equipped with a 1000-liter foam AFFF (3%) fire extinguisher trailer, designed for exceptional fire suppression performance. This system is ideal for high-risk areas such as refineries, oil and gas installations, and chemical warehouses.

Durable Construction

The Fire Knock-Off System features a main barrel constructed from 6mm mild steel sheet. This material ensures both durability and strength. The barrel, welded electrically, can withstand pressures up to 350 psi (25 bar). It includes a manhole, filling and drain connections, pressure gauges, and a pressure release valve, all designed for user convenience and maintenance.

Effective Expelling Mechanism

The system uses two nitrogen cylinders with pressure regulators as the expelling agents. This design allows for efficient operation, ensuring the AFFF solution is discharged effectively during emergencies. Opening the nitrogen cylinders pressurizes the main cylinder and activates the AFFF discharge.

Mobile Trailer Design

The trailer features a 2-axle, 4-wheeler setup with solid rubber tires (two 16″ and two 14″). A swivel assembly on the front axle provides easy maneuverability, allowing for quick deployment to emergency sites. This mobility is essential for rapid response in emergencies.

Advanced Hose Reel and Discharge

Our system is equipped with two hose reels, each containing a 1″ x 100 ft high-pressure hose. Each reel has individual on/off controls and TP nozzles, enabling precise application of the AFFF solution. With a discharge time of 4 to 5 minutes and a throw distance of 60 to 70 feet, the system effectively tackles fires from a safe distance.

Ideal for High-Risk Industries

Designed for long-range performance, the Fire Knock-Off System is a crucial tool for industries handling highly flammable substances. It provides reliable support for firefighting operations, ensuring safety and peace of mind for workers in high-risk environments.

Conclusion

The Fire Knock-Off System (1000 Liters) from Silver String Chemicals is a comprehensive solution for demanding environments. Its robust construction, efficient expelling mechanism, and advanced hose reel features make it an essential asset for any facility where fire safety is crucial. Invest in our state-of-the-art fire knock-off system to enhance the safety of your operations.
